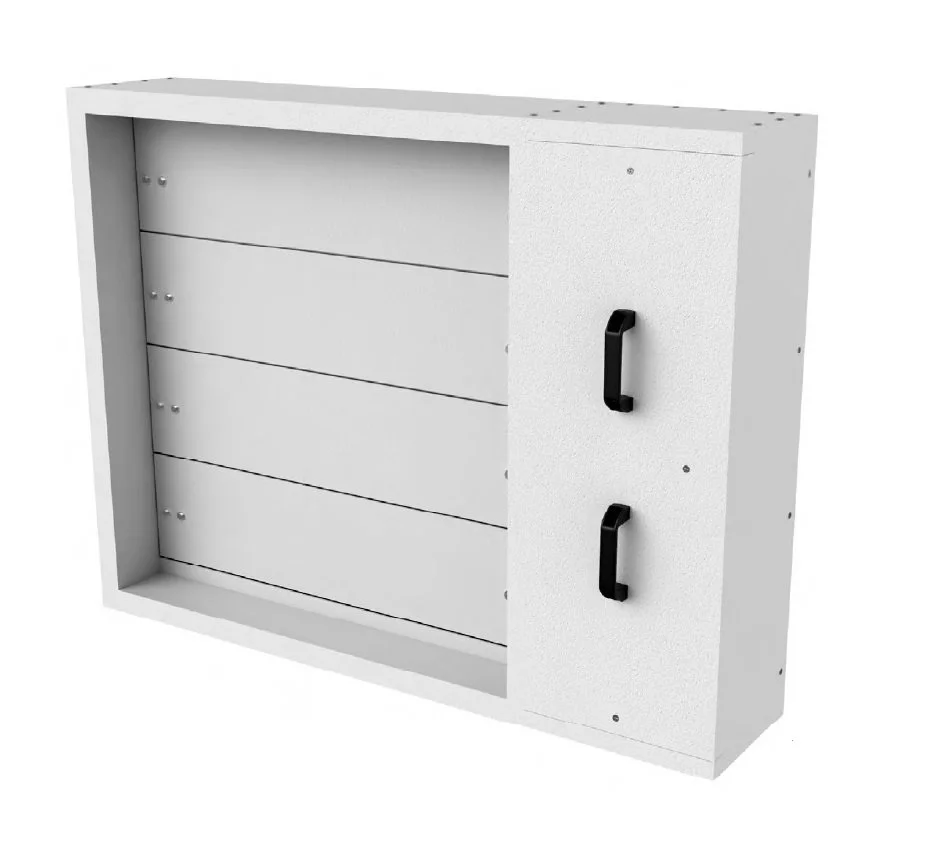

Smoke control dampers FSD are used in smoke extraction

systems for extraction of smoke gases or providing supply air to

one or more fire compartments. Smoke control dampers consist

of calcium silicate casing and calcium silicate damper blade.

Calcium silicate blade is equipped with galvanized steel shaft

and with seals. Seals are made out of silicon and of intumescent

material. Smoke control dampers FSD are produced in sizes from

200x240 till 1200x2040 mm and are equipped with Belimo

actuator in version 24V or 230V.

Activation of smoke control dampers equipped with

electric actuator can be via smoke detector or remotely via control

signal. Rearming of the electric smoke damper can also be done

remotely via control signal. All electric actuators are equipped

with end switches for position signalling.

In case of smoke detection the actuator is triggered by a signal.

The signal can come either from a duct smoke detector or

from a fire alarm system. FSD smoke control damper have two

safe positions: open and closed. Depending on the fire site

and the path of the smoke to be extracted, the safe position is

either “open” or “closed”. The blades of FSD move to the safe

position when receiving an automatically or manually triggered

control signal.

FSD smoke control damper complies with the requirements

of EN 12101-8, and is tested to EN 1366-10 and EN 1366-2.

Classification of damper is EI 120/90 (vedw-hodw, i↔o) S1000

C10000 HOT 400/30 MA multi.
